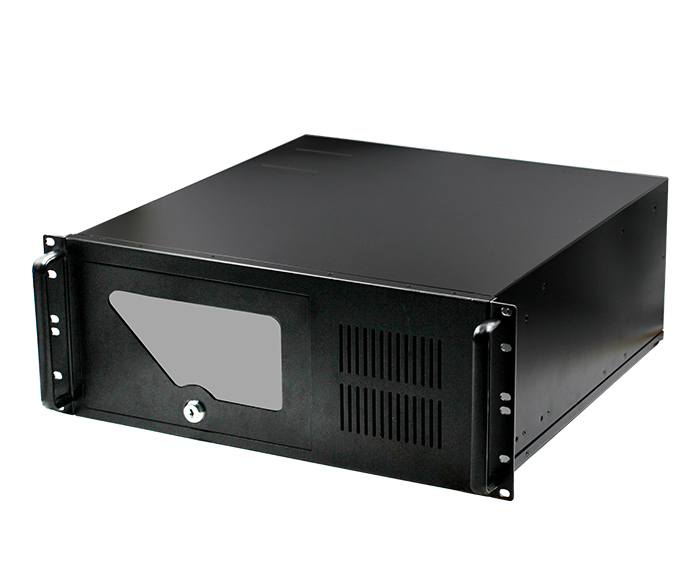

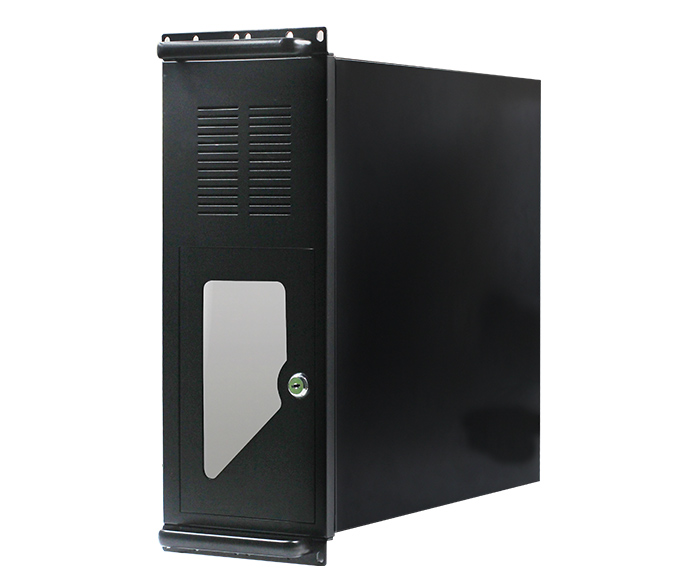

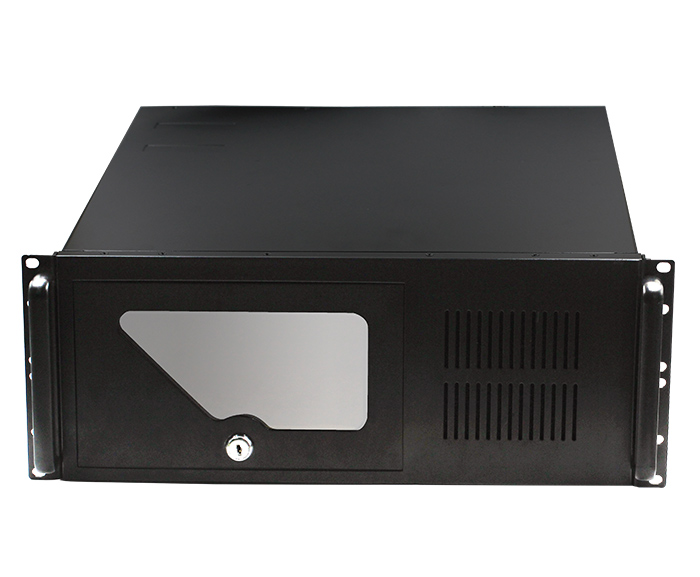

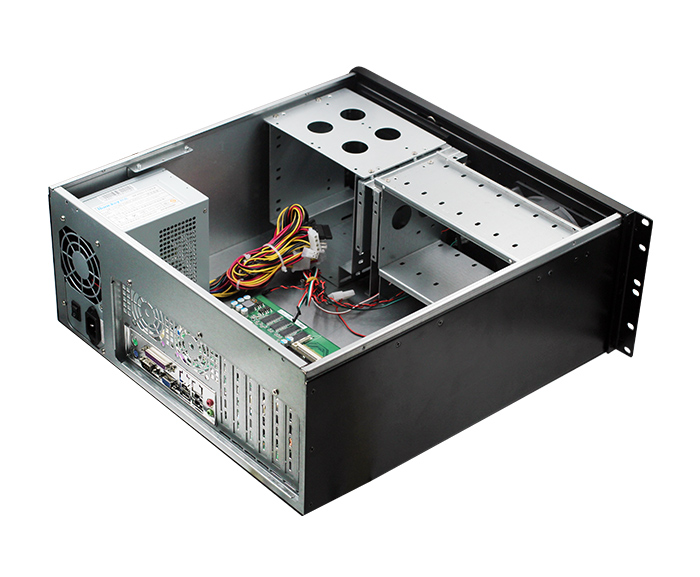

4U Computer（PIMB-H170）

Model : 4U Computer（PIMB-H170）

Description :
◆support LGA1151 socket Intel 6th and 7thi3-i5-i7/Pentium/Celeron CPU
◆ H110/H170high speed chipset；
◆ 4*DDR4 Ram socket ，support DDR4 2133/2400Mhz support dual channel；
◆ 1*VGA 1*HDMI 1*DP 1*DVI（support three screen，HDMI，DVI and DP support 4096*2304 4K display out put
◆ 1*PCIE_X16 2*PCIE_X4 1*PCIE_X1；
◆ Support Intel AMT active management technology (requires I5 or above CPU)）
◆ ATX Power supply；
◆ size：482*450*178mm

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆support LGA1151 socket Intel 6^th and 7^thi3-i5-i7/Pentium/Celeron CPU

◆ H110/H170high speed chipset；

◆ 4*DDR4 Ram socket ，support DDR4 2133/2400Mhz support dual channel；

◆ 1*VGA 1*HDMI 1*DP 1*DVI（support three screen，HDMI，DVI and DP support 4096*2304 4K display out put

◆ 1*PCIE_X16 2*PCIE_X4 1*PCIE_X1；

◆ Support Intel AMT active management technology (requires I5 or above CPU)）

◆ ATX Power supply；

◆ size：482*450*178mm

Specifications

Model	4U Industrial computer（PIMB-H170）
size	482450178mm
material	Advanced galvanized steel sheet
CPU	Support LGA1151?socket Intel 6th and 7^th?i3-i5-i7/Pentium/Celeron CPU
Chipset	H110/H170?high speed chipset
Operation system	Windows7 Windows8.1 Windows10 Linux（ if with 7^th?CPU , only supports Windows10 and Linux）
Ram socket	4*DDR4?RAM Socket，support DDR4 2133/2400Mhz?dual chanel
Lan Port	Onboard?2?Gigabit 1Intel I211 and 1*Intel I219
Standard Fan	onboard?HDA ALC662
Expansion socket	112025?fan or 26025?fan for optional
CD driver	Case support 7*Whole size PCIE Socket
Hard disk	support 3*5.25 driver
Audio	8*3.5inch hard driver Hole
Storage socket	4*SATA socket
Color	Black

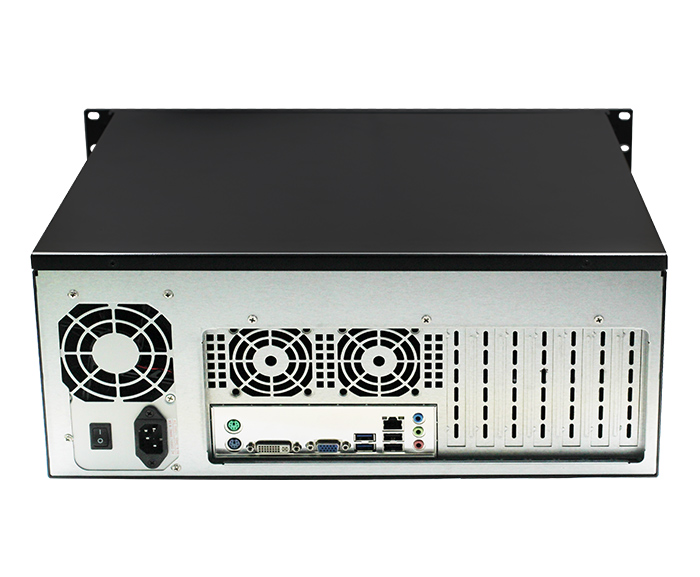

Panel Ports	1DVI 1COM 1DP 1HDMI 6USB3.0 2USB2.0 2LAN 1LINE OUT 1MIC IN ?1LINE IN
Power supply	Desktop ATX Power supply
Net weight	10KG
Gross weight	12.0KG

Size

rder information

Suitable Motherboard

description

CPU?optional

?

PIMB-H170

Support LGA1151?socket Intel 6^th?and 7^th

?i3-i5-i7/Pentium/Celeron CPU

?H110/H170?high-speed chipset

?

CPU?type：

Intel?6/7^th?i3-i5-i7/Pentium/Celeron?CPU
